A1|Maximumcapacityforsmallproductsis4800pcs/ hrfor30-60gproducts. |
A2|6independentmotorsareequippedtocontrolthespeedofhoppersandconveyorbelt. Thisdesignbringsmoregentleextrusiontothematerials. |
A3|Evenbetterproductshapewithweightaccuracyinlessthan2gramsfor30-60gproducts. |
A4|TheshuttersaremadeofhighqualityUPEmaterials.
A-5 | Motors, geardrivers, converters, reductiongearsareimportedfromTaiwanforlonglifeshelf.ElectricsensorsareimportedfromJapan.Massivedesignforhighendurability. |
A-6 | 2kindsofhoppers( verticalandhorizontal) istestedtobesuitableforbothdifferentki ndsofdryorwetfilling.
Professional Encrusting and Forming Machines Jam Filled Cookies
|
Multi-function Encrusting Machine |
||
|
Model:YJ-1000S |
||
|
Features: |
|
|
|
A-1 |
Maximum capacity for small products is 4800 pcs/hr for 30-60g products. |
|
|
A-2 |
6 independent motors are equipped to control the speed of hoppers and conveyor belt. This design brings more gentle extrusion to the materials. |
|
|
A-3 |
Even better product shape with weight accuracy in less than 2 grams for 30-60g products . |
|
|
A-4 |
The shutters are made of are equipped with high quality UPE materials. |
|
|
A-5 |
Motors, gear drivers, converters, reduction gears are imported from Taiwan for long life shelf. Electric sensors are imported from Japan.Massive design for high endurability. |
|
|
A-6 |
2 horizontal hoppers with is tested to be suitable for most elastic dough and nonelastic dough. Independent synthesis device is added to improve the texture and taste of raw material.
|
|
Applications:
Ginger Bread, Fruit bars, Jam filled Cookies, Chocolate filled cookie, 2 color cookie, Dates filled Mammoul, Mochi,
Meat filled kubba, Vegetable filled Puri&Kachori, Nuts filled mooncake, Fish Balls…etc.
Filling:Designed for either dry or wet filling Products.
Dough:Designed for either elastic or nonelastic dough products.
Unique Filling:2 layers filling device is added to achieve unique 2 layer filling products
Specifications:
|
length |
1550mm |
|
width |
850mm |
|
height |
1845mm |
|
weight |
480kg |
|
Electric capacity |
4.5kw |
|
Voltage |
380V, 3 Phase or 220, 1 phase as required |
|
hopper capacity |
25L+25L |
Competitive Advantage:
1. Advanced design and craft.
2. High reputation and credit.
3. High quality spare parts.
4. Easy operating, cleaning & maintaining.
|
Ghotab Encrusting and Forming Machine |
||
|
Model:YJ-900T |
||
|
Features: |
|
|
|
A-1 |
Maximum capacity for small products is 4800 pcs/hr for 30-60g products. |
|
|
A-2 |
6 independent motors are equipped to control the speed of hoppers and conveyor belt. This design brings more gentle extrusion to the materials. |
|
|
A-3 |
Even better product shape with weight accuracy in less than 2 grams for 30-60g products . |
|
|
A-4 |
The shutters are made of are equipped with high quality UPE materials. |
|
|
A-5 |
Motors, gear drivers, converters, reduction gears are imported from Taiwan for long life shelf. Electric sensors are imported from Japan.Massive design for high endurability. |
|
|
A-6 |
2 kinds of hoppers(vertical and horizontal) is tested to be suitable for both different kinds of dry or wet filling. |
|
Filled Ghotab of different taste
Filling:Designed for either dry or wet filling Products.
Dough:Designed for most nonelastic dough products.
Unique Filling:2 layers filling device is added to achieve unique 2 layer filling products.
|
length |
1550mm |
|
width |
850mm |
|
height |
1845mm |
|
weight |
480kg |
|
electric capacity |
4.5kw |
|
Voltage |
380, 3 Phase or 220, 1 phase as required |
|
hopper capacity |
20L+28L+5L |
1. Advanced design and craft.
2. High reputation and credit.
3. High quality spare parts.
4. Easy operating, cleaning & maintaining.
|
Multi-function Encrusting Machine |
||
|
Model:YJ-900S |
||
|
Features: |
|
|
|
A-1 |
Maximum capacity for small products is 4800 pcs/hr for 30-60g products. |
|
|
A-2 |
6 independent motors are equipped to control the speed of hoppers and conveyor belt. This design brings more gentle extrusion to the materials. |
|
|
A-3 |
Even better product shape with weight accuracy in less than 2 grams for 30-60g products . |
|
|
A-4 |
The shutters are made of high quality UPE materials. |
|
|
A-5 |
Motors, gear drivers, converters, reduction gears are imported from Taiwan for long life shelf. Electric sensors are imported from Japan.Massive design for high endurability. |
|
|
A-6 |
2 kinds of hoppers(vertical and horizontal) is tested to be suitable for both different kinds of dry or wet filling. |
|
Ginger Bread, Fruit bars, Jam filled Cookies, Chocolate filled cookie, 2 color cookie,
Dates filled Mammoul, Mochi, Meat filled kubba, Vegetable filled Puri&Kachori, Nuts filled mooncake, Fish Balls…etc.
Filling:Designed for either dry or wet filling Products.
Dough:Designed for most nonelastic dough products.
|
length |
1550mm |
|
width |
850mm |
|
height |
1845mm |
|
weight |
480kg |
|
electric capacity |
4.5kw |
|
Voltage |
380, 3 Phase or 220, 1 phase as required |
|
hopper capacity |
25L+25L |
1. Advanced design and craft.
2. High reputation and credit.
3. High quality spare parts.
4. Easy operating, cleaning & maintaining.
|
Multi-function Encrusting Machine |
||
|
Model:YJ-880S |
||
|
Features: |
|
|
|
A-1 |
Maximum capacity for small products is 4800 pcs/hr for 30-60g products. |
|
|
A-2 |
6 independent motors are equipped to control the speed of hoppers and conveyor belt. This design brings more gentle extrusion to the materials. |
|
|
A-3 |
Even better product shape with weight accuracy in less than 2 grams for 30-60g products . |
|
|
A-4 |
The shutters are made of high quality UPE materials. |
|
|
A-5 |
Motors, gear drivers, converters, reduction gears are imported from Taiwan for long life shelf. Electric sensors are imported from Japan.Massive design for high endurability. |
|
|
A-6 |
2 vertical hoppers is for most dry fillings and some wet fillings.More gentle extruding to the raw materials. |
|
Ginger Bread, Fruit bars, Jam filled Cookies, Chocolate filled cookie, 2 color cookie, Dates filled Mammoul, Mochi,
Meat filled kubba, Vegetable filled Puri&Kachori, Nuts filled mooncake, Fish Balls…etc.
Filling:Designed for for most dry fillings.
Dough:Designed for most nonelastic dough products.
|
Length |
1550mm |
|
Width |
850mm |
|
Height |
1845mm |
|
Weight |
480kg |
|
Electric capacity |
4.5kw |
|
Voltage |
380, 3 Phase or 220, 1 phase as required |
|
Hopper capacity |
25L+25L |
1. Advanced design and craft.
2. High reputation and credit.
3. High quality spare parts.
4. Easy operating, cleaning & maintaining.
|
Product Description

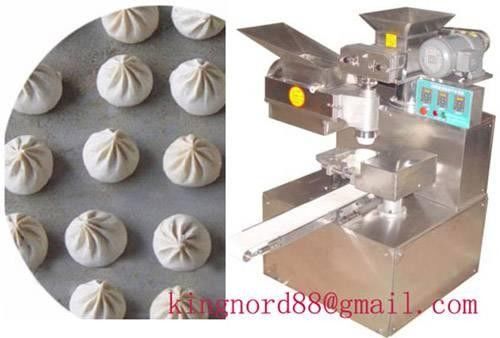

This auto encrusting machine suit all kinds of round shape stuffing dim sum,like Chinese steam Bun, it can be stuffed with various fillings as sweet bean paste, vegetable mixture,all kinds minced meat,sea food…and the proportion of filling and wrapper is adjustable,small type bun is famous as Chinese xiao long bao,the max. unit can reach 110g in weight,mini one is only 25g;each machine is matched with two sets forming mouls,one is flat and other one with 9 folding wrapper flower. finished dim sum can be steamed, boiled or cooled in refrigerator.
Product Specification / Models
Main Technical Parameter： Bun weight：25-110g./pcs. Capacity：1300-2500pcs./h. Power：1.9Kw（220V 50Hz） Overall size： L1150 x W900 x H1400 Net Weight：420kg
Automatic Encrusting Machine
Machine Introduction:
Our company has solid technical team and continuous enhances cooperation.
We keep in step with Advanced Technology of International Food Machinery.
Also we offer design and layout proposals for your factory.
As the professional China Biscuit Machine Manufacturer ,To achieve an ideal effect, This Automatic Encrusting Machine is good quality and can make various products’combination according to users’special requirements such as factory’s layout and biscuit’s style, shape.
Whole Encrusting Machine Pastry Machine Constituent Parts:
Dough Mixer---Food Making( Encrusting Machine )---Inlet/Outlet Part
---Food Tunnel Oven---Cooling Conveyor
KUFA Machines' Characteristics:
1. Adapts imported electrical components,
2. Frequency control of speed,
3. Efficient energy-saving,
4. Either single or combined controlment.
5. small capacity ,suitable for starter of biscuit market
Encrusting Pastry Food Samples:
