High Precision Steel API Pipe Welding Machine , Pipe Production Line

High Precision Steel API Pipe Welding Machine , Pipe Production Line

  • High Precision Steel API Pipe Welding Machine , Pipe Production Line
High Precision Steel API Pipe Welding Machine , Pipe Production Line
Product Details:
Place of Origin: china
Brand Name: HRF
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: PLEASE CONTACT US
Packaging Details: Naked cargo and wooden box
Delivery Time: 90
Payment Terms: TT as downpayment,TT before shipment or LC
Contact Now
Detailed Product Description
Control: Automatic Decoiler: Double Head
Material: Steel Name: Welded Tube Mill
Pipe Type: API Pipe Power: 132Kw
Size: 0.3mm - 1.0mm
High Light:

Tube Welding equipment

,

pipe making equipment







Model: ZY16, ZY20, ZY32, ZY50, ZY76, ZY114, ZY165, ZY219, ZY273, ZY325

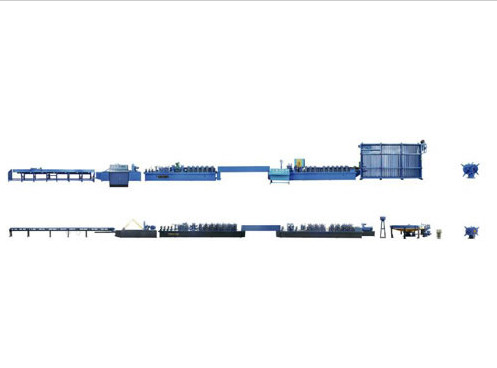

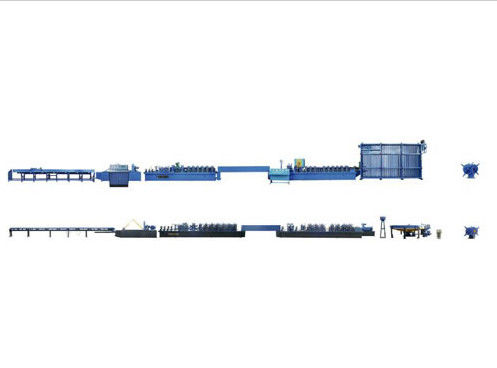

Description of Welding Pipe-Making Line:


This high frequency pipe welding machine made in our company is introduced by the advanced technology from U.S., Japan and Taiwan etc. This precision high frequency welding pipe-making machine can make welded pipes with pipe diameter from 7.5mm to 50mm. There are ZY16, ZY20, ZY32, ZY50, ZY76, ZY114, ZY165, ZY219, ZY273 and ZY325 suite for different pipe diameter. Those machines are well praised by clients from more than 20 regions and countries, such as Taiwan, Middle East and so on. Annual production capacity of this pipe weld machine (welding pipe making line) is 150 sets.

What's more, there are well trained, experienced technicians that can design a welded pipe-making equipment of international standard and meet different needs. For more information of welding pipe-making line, please contact us.



Product introduction of this Pipe Welding Machine:



Equipment Type

ZY16

ZY20

ZY25

ZY32

ZY45

Manufacturing pipe diameter

ф7.5-16mm

ф10-25mm

ф10-28mm

ф13-38mm

ф16-50mm

Manufacturing thickness

0.3-1.0mm

0.3-1.0mm

0.5-1.5mm

0.6-1.8mm

0.7-2.0mm

Producing speed

0-90m/min

0-90m/min

0-9.0m/min

0-90m/min

0-80m/min

Main engine power

22kw

37kw

45kw

75kw

132kw

High frequency power

60kw

60kw

100kw

100kw

150kw



Main functions of this Pipe Welding Machine:


ZY16 welding Pipe making line mainly applies in manufacturing electronic heating pipes and refrigerators pipes and suitable sizing thin-wall pipes.
ZY16 Pipe-making machine line mainly applies in manufacturing thin-wall pipes.
ZY25, ZY32, ZY45 Pipe-making machine line mainly applies in manufacturing frame-tubes and fitness equipment tubes.

Basic components:
Double-head decoiler
Shearing butt welding (customer self-assembly)
Looper-forming machine-high frequency welding-removing outter burrs
Pipe Welding Machine Sizing mill
Sipping and standing straightening
Computer sawing
Blanking frame



Equipment Type

ZY50

ZY60

ZY76

ZY89

Manufacturing pipe diameter

ф20-63.5mm

ф25-76mm

ф32-89mm

ф35-100mm

Manufacturing thickness

0.8-2.75mm

1.0-3.2mm

1.2-3.75mm

1.2-4.0mm

producing speed

0-70m/min

0-70m/min

0-70m/min

0-65m/min

Main engine power

150kw

180kw

264kw

264kw

Main engine power

200kw

250kw

300kw

300kw



Main functions:
ZY50, ZY60, ZY Pipe-making machine line mainly applies in manufacturing frame tubes and fitness equipment tubes.
ZY50 Pipe-making machine line mainly applies in manufacturing structural tube.



Basic components of this welding Pipe-making line:


Double - head decoiler
Shearing butt welding (customer self-assembly)
Pipe Welding Machine Loopier
Forming machine
High frequency welding
Removing outter burrs - sizing mill
Turkey straightening
Computer sawing
Blanking frame

Parameter of this welding Pipe-making line:

Equipment Type

ZY125

ZY165

ZY219

ZY273

Manufacturing pipe diameter

ф50-130mm

ф76-165mm

ф89-219mm

ф100-273mm

Manufacturing thickness

2.0-5.0mm

2.0-6.0mm

4.0-8.0mm

4.0-12mm

producing speed

0-45m/min

0-45m/min

0-40m/min

25m/min

Main engine power

370kw

400kw

400kw

640kw

High frequency power

400kw

500kw

600kw

800kw



Main functions:


ZY125, ZY165, ZY219, ZY273 Pipe-making machine line mainly applies in manufacturing API pipe, pressure transmission pipe line , pressure tubing (penstock) and structural tube.



Basic components of this Pipe Welding Machine:


Double-head decoiler
Wrapper rolling
Head straightening
Leveling shearing butt welding (customer self assembly) looper
Forming machine-high frequency welding removing outter burrs
Sizing mill
Computer sawing-blanking frame



The forms of specification of all kinds of high precision welded steel tube




Round Tube

Φ8

Φ9

Φ9.5

Φ10

Φ11

Φ12

Φ12.7

Φ13

Φ14

Φ15

Φ15.8

Φ16

Φ17

Φ18

Φ19

Φ21

Φ22

Φ22.2

Φ23.8

Φ25.4

Φ27/27.3

Φ28.6

Φ31.8

Φ32

Φ34/35

Φ36

Φ38.1

Φ42.5

Φ48/49

Φ50

Φ50.8

Φ54.5

Φ60/60.6

Φ63.5

Φ76.2

Φ18.5

Φ24.5







Square Tube

□8×8

□9.3×9.3

□12.7×12.7

□16×16

□16.3×16.3

□18×18

□19×19

□20×20

□21×21

□22×22

□22.2×22.2

□25×25

□25.4×25.4

□30×30

□33.4×33.4

□32×32

□38×38

□40×40

□42×42

□45×45

□50×50

□60×60





Rectangular Tube

□6×10

□9×30

□10×16

□10×20

□10×18

□10×26

□12.7×38.1

□12.7×25.4

□13×26

□15×30

□15×45

□15×50

□20×30

□20×40

□17.2×42.6

□19×38.5

□23×53

□25×50

□25.4×50.8

□30×60

□38×50

□40×70

□40×80

□25.4×76.2

□14×20

□11.7×11.7

□30×70







Level Elliptic / Oval Tube

12.5×25

15×23

15×30.5

15×45

15×50

10×60

10×70

20×33.5

10×30

20×40

20×60

30×70

40×70

40×80

50×100

10×19

11.6×17.8

16.5×34

Elliptic Tube

9×16

10×17

6×33

38.8×89

18.7×28.7

20×26.6

Bread Tube

16×14.4

18.4×20

12.5×25

24.8×39.7

35×40



More Description :
The specification about removing inner burrs: Φ27.3×1.5Φ34×1.8 Φ43.2×2.0 Φ49×2.0 Φ60.6×2.0 Φ28.6×0.9
Some abnormal tubes of Portional special specifications may be determined by the specific drawings.
